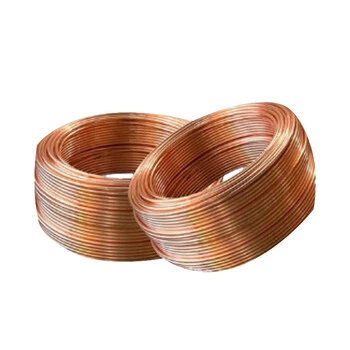

Copper Coated Steel Wire For Duct

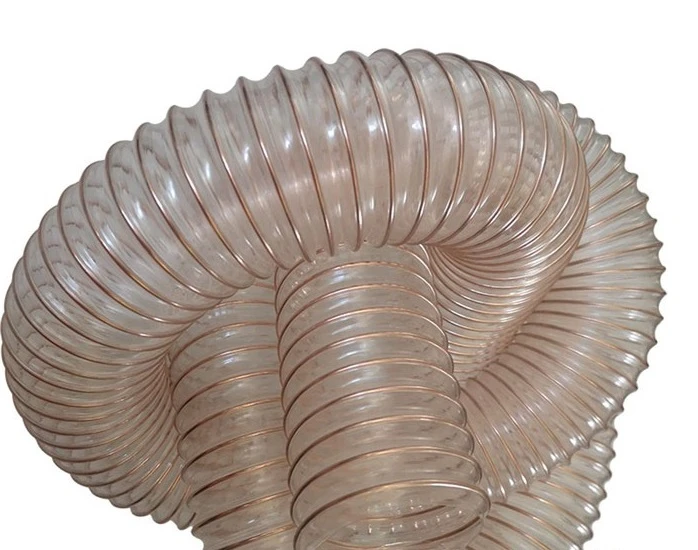

Vicrown Copper Coated Steel Wire for flexible duct & duct hose is high carbon spring steel wire with copper coating. It is used inside duct duct or PU hose for reinforcement, providing strength and flexibility, often embed in material like PU ( polyurethane), for heavy-duct applications like dust extraction, ventilation, or high-pressure industrial use.
Features
Product Description
Vicrown Copper Plated Steel Wire use quality high carbon steel as the substrate and coated with a copper layer through precision electroplating technology. Our signature copper coating process involve applying a uniform layer of copper to wire, ensuring superior adhesion and a consistent finish. the copper coated wire offer superior surface, corrosion resistance, and excellent workability, make it an ideal choice for various industrial application.
Core Advantages
Super resistant to salt spray corrosion
Brass coating forms a dense passivation film in humid and high salt environments (such as coastal areas and chemical plants), with salt spray resistance better than galvanized steel wire by more than 30%, significantly extending the service life of air ducts in harsh environments.
Golden decorative surface
The bright brass coating provides high-end metallic texture for air ducts, especially suitable for exposed pipelines or high-end commercial spaces (hotels, exhibition halls), enhancing the overall aesthetic of the project.
High ductility&easy processing
The brass layer has strong flexibility, significantly reducing the risk of brittle cracking during processing, maintaining the integrity of the coating during high-speed winding and bending forming, and improving the production efficiency of air ducts.
Outstanding cost-effectiveness ratio
Replacing pure brass wire with steel core reduces material costs by more than 50% while maintaining corrosion resistance and decorative properties, and the long-life design further reduces replacement expenses.
Application Fields
1.High end commercial building ducts: exposed ventilation systems for hotels, shopping centers, exhibition halls, etc. (both functional and decorative).
2.High corrosion environment pipelines: salt spray/humid environments such as coastal facilities, ship ventilation, chemical plants, and swimming pool dehumidification systems.
3.Precision equipment supporting air ducts: places with strict structural stability
4.Requirements such as laboratories, clean workshops, and data centers.
5.Integrated building decoration duct: Integrating building interior design to achieve "invisibility" or "elementization" of ventilation ducts.
TECHNICAL SPECIFICATIONS
|
Item |
Parameter |
| Material |
High carbon steel C1060 C1070 Customizable with special specifications |
| Surface finish | Copper coating |
|
Wire diameter range |
0.80mm to 3.50mm Customizable with special specifications |
| Diameter Tolerance | +/- 0.02mm |
| Tensile strength |
1600 Mpa 1750Mpa Customizable base on application requirement |
| Packaging form |
Steel Reel : Standard 420kgs Capacity Reel-less core: Standard 420kgs Capacity Customizable base on application requirement |
