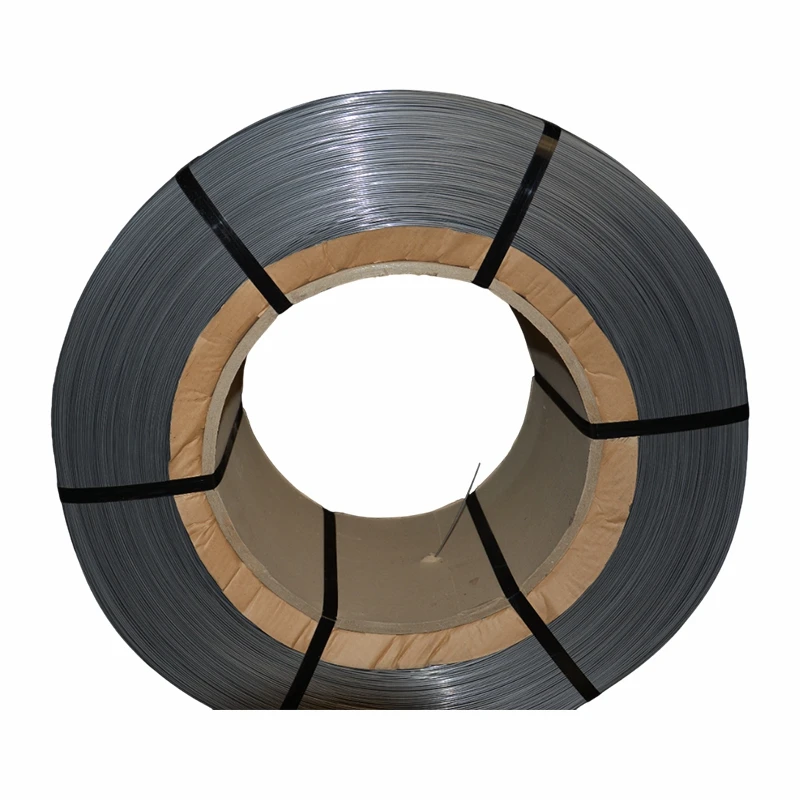

Steel Wire for Optical Fibre Cable

Send Inquiry

Features

product presentation

As the "invisible guardian" of modern communication networks, steel wire for optical fibre cable with their outstanding mechanical properties and protective characteristics to become the core material ensuring the stable operation of optical cables. By enhancing structural strength, resisting external damage, and improving electromagnetic shielding performance, it not only ensures safe transmission of optical fibers in complex environments but also lays a solid physical foundation for high-speed communication networks such as 5G and IoT.

core advantage

Ultimate tensile strength and long-term fatigue resistance

Selected low-carbon cold-drawn steel wire (carbon content C ≤ 0.12%), after precision cold working and heat treatment, achieves an ultra-high tensile strength of 1600-2000 MPa, far exceeding industry standards. Certified to the IEC 60794-1-21 standard, it passes bending fatigue tests with over 500,000 cycles without breaking. Even in scenarios involving frequent vibrations and dynamic stretching during installation, it maintains structural integrity, significantly extending the lifespan of optical cables.

Zero interference protection, stable transmission guarantee

Innovatively adopting a double-layer galvanizing process (with a zinc layer density of ≥60g/m²) and organic passivation film technology, it has withstood over 720 hours of ASTM B117 salt spray testing without red rust, demonstrating excellent corrosion resistance. Meanwhile, the resistivity is precisely controlled between 0.12-0.15Ω·mm²/m, effectively shielding electromagnetic interference and preventing signal attenuation, ensuring stable data transmission for communication.

application area

Core scenarios of communication networks

FTTH household optical cable

As an anti-bending microbundle tube reinforcement core, it can meet the complex wiring requirements in narrow space and ensure the stable access of home network.

Undersea cable

using double-layer armored steel wire with a diameter of 3.0mm-6.0mm, it can resist high pressure in deep sea, impact of ocean current and mechanical damage, and support the "information artery" of transoceanic communication.

5G base station

Rodent-resistant flame retardant optical cable reinforcement layer, through the high strength and puncture resistance of steel wire, reduce the risk of accidental damage in the field environment.

Special environment solutions

Military field optical cable

Develop lightweight high-strength steel wire (strength ratio is greater than or equal to 1:8), which can reduce the load while ensuring communication security and meet the mobility requirements of field deployment.

Oilfield sensing optical cable

Equipped with corrosion resistant coating (API 16D standard), long service life in highly corrosive oil and gas environment, and real-time data monitoring.

Aerospace

Customized wide temperature range special alloy steel wire can maintain stable performance at extreme temperatures of-60℃~300℃, and is used in the internal communication system of aircraft.

technical specifications

parameter	standard
material quality	SWRH32A-SWRH82A cold drawn steel wire
diameter	Standard 0.8mm/1.6mm/2.5mm (±0.015mm)
cladding material	Galvanized layer (Zn≥99.9%, ISO 7989-2 standard)
tensile strength	1750±50 MPa (customizable 2200MPa aviation grade)
torsional property	≥ 25 times (D=10 x d, ISO 6892-1 standard)

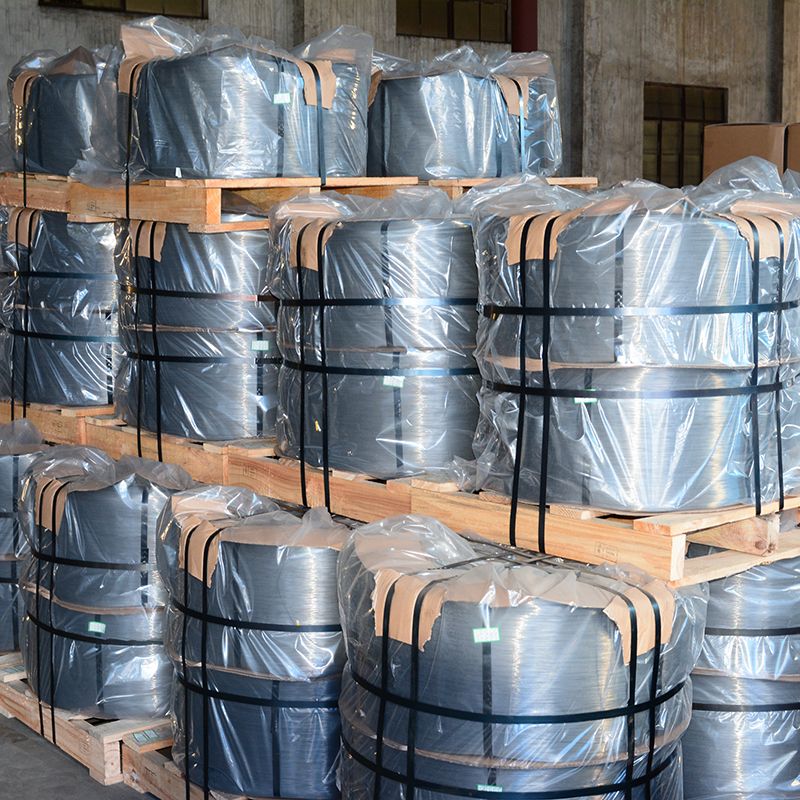

pack	Moisture-proof vacuum tray (ISO 2233 standard)/customized I-beam wheel
Industry certification	RoHS & REACH compliant \| TUV anti-electromagnetic interference certification \| UL flame retardant certification
